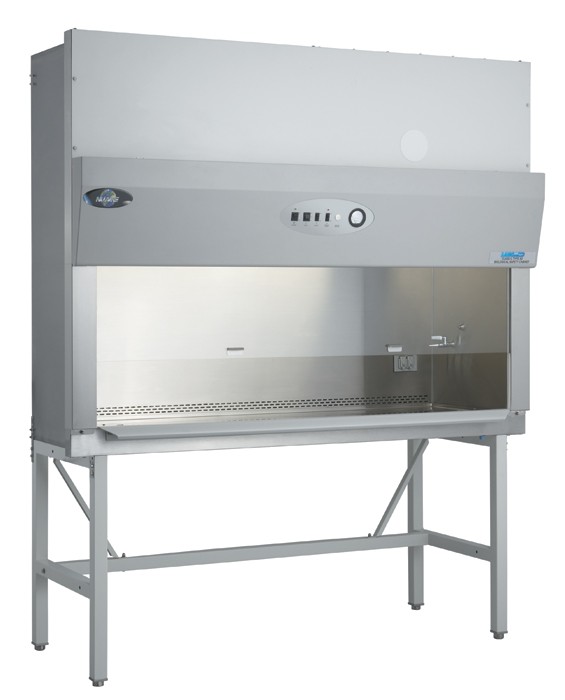

NU-425 Class II, Type A2 Bio safety Cabinet
 작성자 : 네오바이오…
Date : 2014-02-06 12:25  |  Hit : 9,788
   nuaire_BSC_brochure.pdf (3.5M) [73] DATE : 2014-03-06 13:11:03
   use-of-hepa-filters-in-bscs[1].pdf (767.3K) [29] DATE : 2014-02-06 12:25:58

*제품 견적이나 기타 자세한 사항은 게시판을 이용해 주십시요.^^


제 조 사 : NUAIRE / U.S.A
제 품 명 : NU-425 시리즈(3ft~6ft)

425

Class II, Type A2 Biological Safety Cabinet




New Motor Technology

The DC-ECM motor technology consumes less electricity, decreases cabinet vibration, and improves biosafety cabinet HEPA filter life, by almost 250%!



 Longer Filter Life

  NuAire uses the largest HEPA filters with the most pleats per square inch; the TouchLink airflow
  control system; internal exaust damper; and individually selected, optimially determined forward-
  curved fans for each model size/width.



model NU-425-200 NU-425-300 NU-425-400 NU-425-500 NU-425-600
Nominal Size 2 ft. (0.6 m) 3 ft. (0.9 m) 4 ft. (1.2 m) 5 ft. (1.5 m) 6 ft. (1.8 m)
Style of Cabinet Bench top/console with optional base stand Bench top/console with optional base stand Bench top/console with optional base stand Bench top/console with optional base stand Bench top/console with optional base stand
Sash Height 8" (203 mm) 8" (203 mm) 10" (254 mm) / 8" (203 mm) 10" (254 mm) / 8" (203 mm) 10" (254 mm) / 8" (203 mm)
Exterior Dimensions (W x D x H)
in. [mm]		 28 ½ x 24 x 51 (724 x 610 x 1370) 41 ⅝ x 32 ⅞ x 63
(1057 x 835 x 1600)		 53 ⅝ x 32 ⅞ x 63
(1362 x 835 x 1600)		 65 ⅝ x 32 ⅞ x 63
(1667 x 835 x 1600)		 77 ⅝ x 32 ⅞ x 63
(1972 x 835 x 1600)
Interior Dimensions (W x D x H)
in. [mm]		 24 ½ x 19 x 23 ½ (622 x 483 x 597)
 34 ⅜ x 23 ½ x 28 ½
(873 x 597 x 724)		 46 ⅜ x 23 ½ x 28 ½
(1178 x 597 x 724)		 58 ⅜ x 23 ½ x 28 ½
(1483 x 597 x 724)		 70 ⅜ x 23 ½ x 28 ½
(1788 x 597 x 724)
Weight   475 lbs. / 215 kg. 500 lbs. / 227 kg. 600 lbs. / 273 kg. 680 lbs. / 308 kg.
Inflow Velocity 105 fpm (.53 m/s) 105 fpm (.53 m/s) 105 fpm (.53 m/s) 105 fpm (.53 m/s) 105 fpm (.53 m/s)
Downflow Velocity 60 fpm (0.30 m/s) 60 fpm (0.30 m/s) 60 fpm (0.30 m/s) 60 fpm (0.30 m/s) 60 fpm (0.30 m/s)
Heat Rejected, BTU, Per Hour
(non-vented)
(vented)		 Inquire 8 (203) opening
826
120		 10(254) / 8(203) opening
1140/1020
157		 10(254) / 8(203) opening
1768/1611
198		 10(254) / 8(203) opening
1884/1768
198
Sound Pressure Level
10(254) / 8(203) opening		 Inquire na / <55 dBa <63 dBa / <56 dba <63 dBa / <58 dBa <63 dBa / <60 dBa
Light Intensity foot-candles (LUX) 90 - 120 (968 - 1291) 90 - 120 (968 - 1291) 90 - 120 (968 - 1291) 90 - 120 (968 - 1291) 90 - 120 (968 - 1291)

Warranty 3 Year Parts and Labor (US & CA)
  4 Year Parts (Intl)
  5 Year Parts and Labor (US & CA) with ES upgrade
  6 Year Parts (Intl) with ES upgrade

Accolades NSF/ANSI 49, UL, UL-C, CE, Energy Saver, Personnel Product Environmental Protection, RoHS
