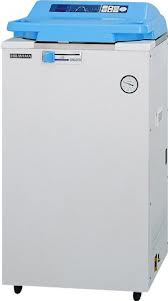

HIRAYAMA 멸균기 HVE-50
 작성자 : 네오바이오…
Date : 2013-12-09 16:50  |  Hit : 6,879



*견적이나 기타 자세한 사항은 게시판을 이용해 주십시요.^^
CAFKXVTYCAM8VT83CAR7E0GJCAYF4PGICA25PCAJCA9D6JHVCAXOMLE7CAUV8IFBCAAUM174CAZ510CSCA1QUX8VCA2164Q2CADDR4PCCAWKPRCRCAW9WECBCA3FNOBTCASQSC3ICA0381QHCARHGTWYCARDBBZP.jpg


제품명 : HVE-50
제조사 : HIRAYAMA ,JAPAN


Main Features

Electromechanical lock system(patent pending).   Memory function (Program your own).
By only using a one-touch lever, you can easily and safely open the lid chamber   You can change the parameters for sterilization. Once changed, they are retained. Once changed, they are retained. You can start simply.
Dual-sensing interlock mechanism.   Space-saving design.
After Sterilization. reduce the pressure without exhaust by Forced Cooling Fan built-in as standard.   The chamber lid opens vertically upwards. This design saves space compared to models in which the lid swings out horizontally.
Pulse Exhaust System.   Process status display.
This is for and quick sterilization of liquids. Pulse Exhaust System enables the chamber to exhaust quickly so that culture media can be cooled down and can be removed without the risk of boiling over.   The current status of the sterilization process is indicated by means of a set of flashing lights.

Specifications
Model HVE-50
   Outside dimensions(Height with lid open) 540W × 530 D × 1040 H mm (1370Hmm)
   Chamber size( capacity) 300 φ × 710 D mm (50 Liter)
   Power source AC  110V/ 120V/ 220V/ 230V/ 240V,   50 / 60 Hz (Please specify the voltage when ordering)
   Net weitht (approx.) 57 Kg
   Power consumption 2.0 kW
   Chamber material SUS304 (Stainiess steel)
   Sterilization temperature range 105 to 135 ℃
  Maximum allowable pressure
  (Gauge pressure) 0.26 Mpa
   Temperature display range 5 to 137 ℃
    Warming temperature range 45 to 60 ℃
   Sterilization timer 1 to 250 minutes
    Pressure gauge 0 to 0.4 MPa
      Sterilization of agar     Preparation → Heating → Sterillaztion → Exhaust (pulse)→ Warming
       (with Warming)    → Completion
   Selective Mode     Liquid sterilization     Preparation → Heating → Sterillaztion →Exhaust (pulse)→Completion
      Sterilization of solids /     Preparation → Heating → Sterillaztion →Exhaust →Completion
      medical instruments
＊Double sensing inter lock mechanism  ＊Over-pressure power cut-off
  ＊Sterilizing time counting timer       ＊Over-temperature power cut-off
    Safety devices/ *Heater malfunction checker  ＊Temperature sensor wire breakage detecter
     Warning alarms ＊Securely closed lid check function ＊Exhaust bottle ready-to-use check system
  ＊Lack-of-water prevention device
     Electric leakage breaker and over current detector Pressure safely valve
      (  Note: The ◈ marked functions show ERORR indicatio on the display when it works)
  Standard accessories    Stainless steel wire baskets,  Heater cover,  Drain hose,  Exhaust bottle,  Caster stoppers.
  Optional accessories    Stainless steel wire baskets, Stainless steel buckets.
※Chart recorder is an option                                                          ※ Specifications subject to change without notice due to continuous improvement
