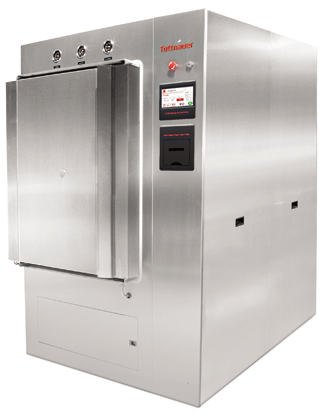

Large Animal Care Autoclaves (340 / 760 Liters)
 작성자 : 네오바이오…
Date : 2014-01-01 10:41  |  Hit : 8,099
   lab-44-en-autoclave-tuttnauer_0.pdf (609.0K) [18] DATE : 2014-01-01 10:56:51

*견적이나 기타 자세한 사항은 게시판을 이용해 주십시요.^^





제품명 : 66 Laboratory Autoclaves(340,450,610,760 LITERS),ANIMAL CARE

제조사 : TUTTNAUER /  ISRAEL

-FEATURE-

The autoclave operates with saturated steam as the sterilizing agent with a temperature range from 105 °C (221°F) to 138 °C (280 °F) and a working pressure that meets AMSE and PED requirements. Each autoclave model is available with either single or double door.

The 66 series is available with two door options:

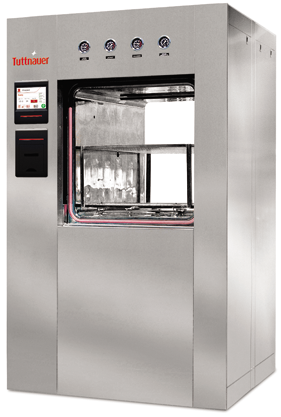

  • Fully automatic vertical sliding door
  • Hinged door with automatic locking

Tuttnauer's laboratory autoclaves are designed to meet BL3 and BL4 bio-safety levels. Furthermore, an optional Bio-Hazard system allows for an effluent decontamination cycle that sterilizes contaminated laboratory waste.

Engineered with People in Mind

Our quality features enable the convenience and durability needed to operate an autoclave with complete peace of mind. The fully jacketed chamber is constructed of long lasting 316L grade stainless steel with superior corrosion resistance. In addition, the generator and piping are constructed of stainless steel. The pneumatic valves are air pressure operated, reducing maintenance. They are safer and more reliable, eliminating the requirement for high voltage. In addition, if no buttons or switches are operated for four hours, the autoclave will switch to standby mode.

Safety is Our Top Priority

 Door Safety

The doors are designed with independent mechanical and digital safety features that guarantee a safe working of the sterilizer.



  • 66 MidRange Autoclave seriesA safety device prevents the operator from opening the door when chamber is pressurized
  • Steam is not allowed into the chamber when the door is open
  • A cycle will not start if the door is open or not properly closed
  • The door cannot open until chamber pressure reaches room pressure
  • Sliding Door Safety -The sliding door progress will automatically stop if an obstruction is detected
  • Double Door Safety – interlocks prevent both doors from being opened simultaneously




General Safety Features



  • Double Independent Monitoring: The combined digital and mechanical monitoring provides a cross reference and guarantees accurate results. The operator has two independent means to monitor temperature and pressure.
  • Safety Valves: Both the chamber and the jacket are equipped with safety valves –if the pressure exceeds the allowed limit the safety valves will discharge.
  • Built-in Steam Generator Safety: A water level monitoring system maintains a constant water level and ensures safe operation of the heaters.
  • Emergency Shut-Off: Easily accessible emergency switches for immediate and safe shut down of the sterilizer.
TECHNICAL CHART
Model
Chamber Dimensions (WxHxD) mm (inc.)
Chamber Volume (Liter)
The 66 Mid Range Series
6690
610 x 610 x 915
340
66120
610 x 610 x 1215
450
6671130
660 x 710 x 1295
610
6671162
660 x 710 x 1620
760


ADVANCED STERILIZATION CYCLES

Liquid Loads

Tuttnauer's laboratory sterilizers are designed for treating sensitve liquid loads. The autoclaves ensure that the correct sterilization temperature is attained when sterilization starts and that sterilization is initiated only when a temperature probe placed inside the medium reaches the preset threshold temperature. Tuttnauer offers advanced options that minimize the exposure time of liquids to high temperatures thereby preventing over cooking without compromising on sterilization results.

Fast Cooling

Accelerated chamber cooling is carefully controlled before chamber doors can be opended preventing a sudden drop in chamber pressure and temperature that can cause liquids to boil over. Tuttnauer’s accelerated cooling technology reduces the number of cycles per day and protects the load by minimizing its exposure to high temperatures. Rapid cooling typically reduces cooling time by as much as 75%.

Improved Air Removal

Effective steam prenetration of wrapped, porous and hollow loads is achieved due to air removal prior to sterilzation by an efficient vacuum pump. The post-vacuum drying phase ensures complete drying of porous loads and hollow instruments, and guarantees that even the most difficult loads will easily reach sterility assurance levels.

Advanced Sterilization Cycles

F0 Cycle

The "equivalent kill effect" F0 value is calculated during the heat-up phase of a sterilization cycle thereby reducing total media exposure time. Sterilization exposure time begins when the slowest-to-heat load temperature sensor within the autoclave has reached a predetermined set temperature.

Streaming Steam Cycle (105°C)

The streaming cycle is most commonly used for melting agar in Petri dishes. It is a low temperature sanitation cycle set at 105°C. Steam is allowed to enter the chamber and the fast exhaust valve is opened to allow steam to stream over the contents of the unit.

Disinfection/Isothermal Cycle (70-95°C)

A flexible low temperature cycle enables disinfection (“low” temperature isothermal). Temperature range settings are flexible within 70°C - 95°C range.


CONTROL SYSTEMS

Advanced Control System for Your CSSD

Take advantage of Tuttnauer’s sophisticated user-friendly control systems for repeatable high performance. Choose either Tuttnauer’s sophisticated Bacsoft controller or the Allen-Bradley (AB 1400 PLC) controller.

Standard Features

  • 7” Multi-color touch screen panel
  • Keypad control panel on second door of two door autoclaves with Bacsoft controller
  • Stores the last 200 cycles in built-in memory
  • Multiple access levels and user passwords to control access/ operation of the autoclave
  • Diagnostic In/Out test (enables technician to check each system component separately)
  • Sterilization Temperature range 105°C to 138°C

Optional Features

  • 10” Multi-color touch screen
  • 21 CFR part 11
  • Up to 8 different barcode readers
  • Independent Recording for cross-checking cycle measurements
  • Disinfection/Isothermal Temperature range from 70°C to 95°C
  • R.PC.R Software or SCADA (Allen-Bradley only) for extended Automated Documentation and Remote Monitoring

Sophisticated Touch Screen HMI

The HMI (Human Machine Interface) has been designed with the following considerations:

  • Multi-color display for easier reading from a distance
  • A Color wheel is used to indicate the stage of the cycle
  • Multilingual (26 languages)












DOCUMENTATION AND MONITORING

R.PC.R Software

Automatic Recording of Cycle Information to Your PC

Reporting You Can Rely On

  • Automatic recording of cycle information to any PC on your network
  • Convenient access to graphs and tables that are easy to understand
  • Easily generate PDF reports
  • No need to file printouts, saving you time

Be in Control with Real-Time Remote Monitoring

  • See the real-time autoclave display on your PC
  • Monitor all activity for up to 8 autoclaves

With R.PC.R you can see: Graphs of the cycle data, Numeric cycle data, cycle print-outs, measured values table, parameter table.

Note:

  • R.PC.R monitoring feature is not available with Allen Bradley controller
  • Optional SCADA system is available with Allen-Bradley controller




 Documentation

Autoclave Touchscreen Control Process documentation is crucial within the CSSD. The modularity and flexibility of our system gives you targeted and customized solutions to track and document the sterilization process.

The modularity and flexibility of our system gives you targeted and customized solutions to further improve the tracking and documentation of the sterilization process. The following documentation features are optional.

Documentation Package

An optional full documentation package is available:

  • Installation Qualification (IQ)
  • Operation Qualification (OQ)
  • Performance Qualification (PQ)

Validation Packages

Tuttnauer provides our customers with services to help expedite the validation and commissioning of your equipment, including:

  • Factory Acceptance Testing (FAT)
  • Site Acceptance Testing (SAT)

Barcode Reader

The barcode reader allows material identification. The data is transferred to the SCADA software and linked to the sterilization cycle parameters for streamlined instrument handling.

Independent Chart Recorder

The Chart Recorder is an independent temperature and pressure measuring system. It gives clear analog/mechanical trend records and print-outs in color. It is simple to operate and has an easy-view display.

Backup of Cycle History Data

A record of cycle history data is critical for hospitals that need reliable documentation. The cycle history backup system stores thousands of hours of cycle data, displayed either graphically or numerically.
