*견적이나 기타 궁금하신 사항은 게시판을 이용해 주십시요.^^

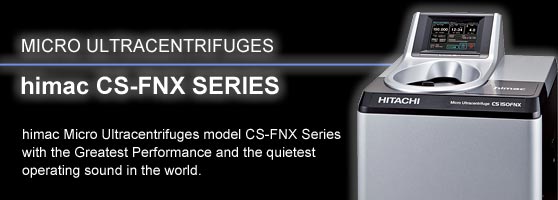

제품명 : CS120XII , CS150XII
(120,000~150,000RPM)
제조사 : HITACHI / JAPAN
FEATURES
*세계 최고의 RCF 1,050,000 xg, 고용량 SWING BUCKET ROTOR(5ML x 4) - MODEL - CT150GXII
*세계 최고속(150,000RPM)
*탁월한 저소음(48DB 이하)
*편리한 진공 상태 표시자
*강력하고 정확한 냉각기
*RTC(REAL TIME CONTROL)기능으로 간단하게 START,STOP 시간 설정
*ROTOR의 폭넓은 선택성
*더 안전하고 편리한 자동 고정식 ROTOR
*비 접촉식 불균형 보호 기능
*CAPCITY - 0.23ML x 20EA ~ 13.5ML x 8EA
Specifications
| Model |
CS150FNX |
CS120FNX |
| Max. speed (rpm) |
150,000 |
120,000 |
| Max.RCF (xg) |
1,050,000 (S140AT rotor) |
771,000 (S140AT rotor) |
| Speed control accuracy |
±50 (5,000 to max. speed) |
| Max. capacity (nominal) |
30ml x 6 tubes (S50A rotor) |
| Max. capacity (nominal) (Swinging bucket rotor) |
7ml x 4 tubes (S50ST rotor) |
| Timer |
1 min. to 99 hrs. and 59 min. with HOLD and RTC (real-time control) function |
| Vacuum system |
Oil rotary vacuum pump and oil diffusion pump |
| Rotor temperature control range(ºC) |
0 to + 40 (1 degree increment) |
| Rotor Cooling method |
Thermo-module cooling system (HFC-free) |
| Screen display |
Colour LCD (touch-sensitive) |
| Rotor setting method |
Self - locking rotor system (no special tool required) |
| Operation noise (dB(A))* |
45 *Measured 1 meter from front |
| Max. heat dissipation into room (kW) |
0.7 or less |
| Drive unit warranty |
5 years |
| Dimensions (㎜) |
440 (W) x 520 (D) x 910 (H), height to table 790 |
| Floor area (m²) |
0.53 (750 x 700 ㎜) |
| Weight (㎏) |
105 |
| Power requirements |
AC208, 220, 230, 240 V ±10%, 8 A ( 50/60 Hz), single phase |
| Standard |
IEC61010-2-020, EN61326, CE marking qualified |
