초고속 원심분리기(80,000~100,000RPM)
 작성자 : 네오바이오…
Date : 2014-01-19 10:58  |  Hit : 4,026
   HITACHI_Centrifuges__NEW__.pdf (26.3M) [29] DATE : 2014-01-19 10:59:38


*견적이나 기타 궁금하신 사항은 게시판을 이용해 주십시요.^^

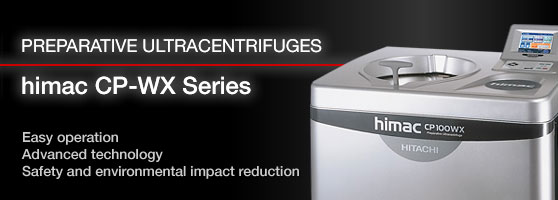

제품명 : CP80WX , CP90WX , CP100WX
                    (80,000 / 90,000 / 100,000RPM)

제조사 : HITACHI / JAPAN


FEATURES

*100,000RPM의 최고속 회전 속도

*ROTOR 수명의 자동적인 관리

*신뢰성 있는 칼라 터치 스크린 KEYPED

*강력하고 정확한 냉각기

*RTC(REAL TIME CONTROL)기능으로 간단하게 START ,   STOP 시간 설정

*전력 소모략을 10% 절감할 수 있는 INVERTER 채택

*CAPCITY - 0.23ML x 72EA ~ 230ML x 6EA















Specifications


Model CP100WX CP90WX CP80WX
Max. speed (rpm) 100,000 90,000 80,000
Max.RCF (xg) 803,000 700,000 615,000
(P100AT2 rotor) (P90AT rotor) (P80AT rotor)
Speed control accuracy ±10 rpm (1,000 rpm to maximum speed)
Set speed 1,000 rpm to maximum speed in increments of 100 rpm
Displaying and setting RCF Applicable (RCF max. or RCF average)
ω2T run Applicable
Drive unit warranty 10 years
Rotor temperature control / display accuracy ±0.5ºC (set temperature is from 0ºC to 40ºC)
Cooling method Thermo-module cooling (CFC/HCFC-free)
Operation panel . Color liquid crystal display (256 color) and keyboard
. Touch-sensitive panel (run screen only)
Rotor life management RLM rotor: automatic management,
Rotor with optical adaptor: management by registration system
Operation results management system / Optional software (CD-ROM, OS: Windows® XP Professional / 2000 Professional)
calculation & simulation system This option requires a PC and RS232C cross cable on the market.
Vacuum system Oil-rotary vacuum pump with moisture removal function and oil diffusion pump.
Pressure range under 0.13 Pa
HEPA filter Option
Operational noise (dB(A)) 53
Heat radiation into the room 1 kW or less
Dimensions (mm) 790 (W) x 690 (D) x 1,000 (H), depth with safety cover: 890, height to the table: 850
Floor area (m2) 0.81 (900 x 900 mm)
Weight (kg) 400
Power requirements Single phase, 50/60 Hz,
AC200/208/220 V ±10%, 20 A max. (normally 8 A)
AC 230/240 V ±10%, 16 A max. (normally 7A)
Conformity to EMC * standards The CP-WX Series ultracentrifuges conform to the following EMC standards:
EN61326, EN61000-3-2, and EN61000-3-3
