고속원심분리기(16,000RPM)
 작성자 : 네오바이오…
Date : 2014-01-20 18:50  |  Hit : 3,822
   HITACHI_Centrifuges__NEW__.pdf (26.3M) [23] DATE : 2014-01-20 18:54:23

*견적이나 기타 궁금하신 사항은 게시판을 이용해 주십시요.^^

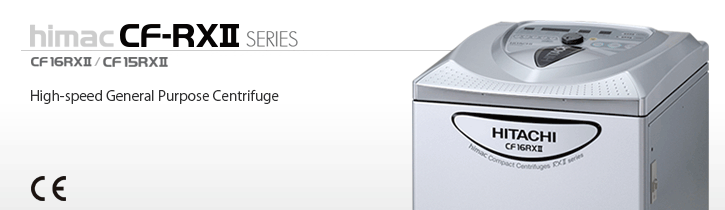

제품명 : CF16RX II (16,000RPM)

제조사 : HITACHI / JAPAN


FEATURES

* MAX SPEED 16,000 RPM

* 다양한 ROTOR 선택 가능

* 자동으로 ROTOR 인지

* ROTOR & SPEED/RCF DISPLAY

* CE MARK OF CONFORMANCE

* QUICK & OPTIMUM ACCELERATION

   /DECELERATION

* IMBALANCE SENSOR

* CAPCITY - 0.2ML x 48EA , 250ML x 4EA

  • Two-in-one! (CF16RXⅡ)
  • From micro-tube rotors to multi-place swing rotors for laboratory use.
  • Provides functions of both CF5RX and CF15RXⅡ.









Specifications

Moled CF15RXⅡ CF16RXⅡ
Type of centrifuge High-speed micro Versatile compact
Maximum speed (rpm) 15,000 16,000
Maximum RCF (x g) 21,900(T14A31 rotor) 21,900(T14A31 rotor)
Drive motor* Inverter motor (brushless)
Rotation control range 300 to 15,000
Timer 5-55 sec/1-99 min., with HOLD function
Temperature setting range -9°C to +40°C
Dimensions (mm) 834 (H) x 370 (W) x 517 (D) 852 (H) x 490 (W) x 580 (D)
Power requirements AC 115V±10%, 15A, 60Hz
AC 200/208V±10%, 8A, 50/60Hz
AC 200/230/240V±10%, 8A, 50Hz
Weight (kg) AC115V spec. 86 110
AC200-240V spec. 92 115
Part No. AC115V spec. No. 90560202 No. 90560402
AC200-240V spec. No. 90560201 No. 90560401


Rotors for CF-RXⅡ Series

Rotors
Rotors
Rotors
Rotors
Rotors
